GHE SNAP MODULAR AUTO-SYSTEM

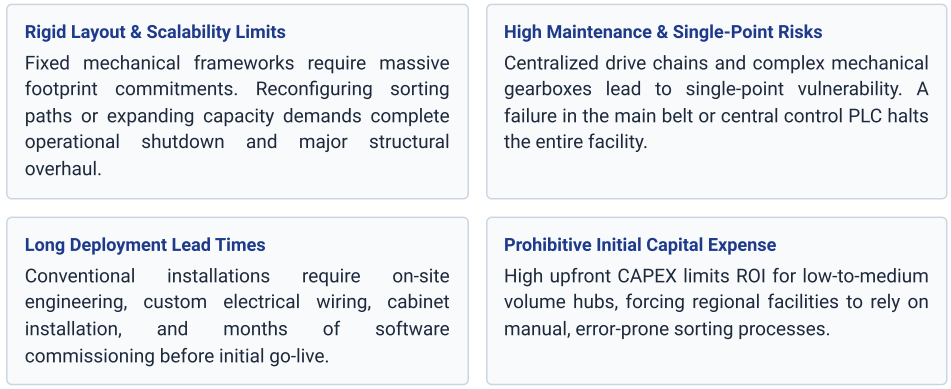

1. PAIN POINTS OF TRADITIONAL AUTOMATED SORTING SYSTEMS

Traditional automated logistics sorting systems (such as high-speed cross-belt sorters and shoe sorters) face significant bottlenecks when scaling across regional hubs and middle-mile sorting centers. Major structural challenges include:

2. GHE STRATEGIC BREAKTHROUGH IN AUTOMATED SORTING

GHE reimagines logistics automation by transitioning from centralized heavy machinery to a decentralized, modular, “snap-and-play” architecture. Rather than building a facility around a fixed machine, GHE provides standardized, autonomous functional units that assemble like building blocks.

• De-Cabinetization Design: Eliminates heavy power distribution cabinets and external control racks by embedding intelligence into localized motor controllers.
• Plug-and-Play Assembly: Mechanically and electrically locks modules together in minutes without specialized toolsets or field wiring.
• Edge-Driven Orchestration: Standardized modules negotiate parcel handoffs autonomously via distributed embedded microcontrollers.

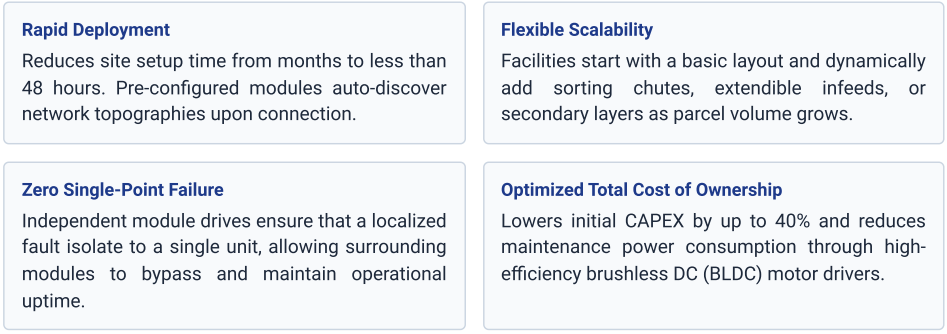

3. COMPREHENSIVE ADVANTAGE ANALYSIS OF GHE SNAP SYSTEM

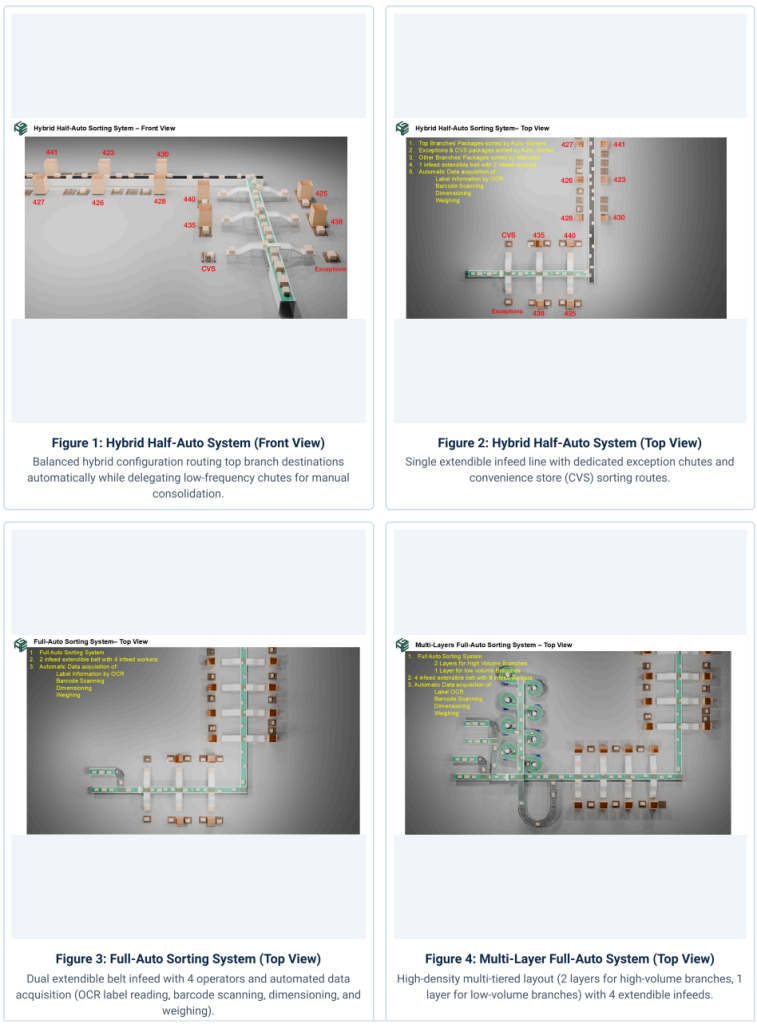

4. SYSTEM 3D MODELING & DEPLOYMENT LAYOUTS

The GHE Snap Modular Auto-System adapts dynamically to diverse logistics footprints. Below are standard 3D deployment layouts modeled for varying throughput capacities and operational workflows:

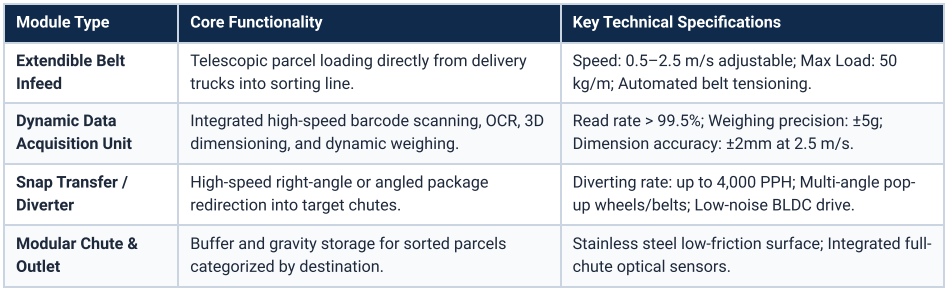

5. FOUR STANDARDIZED SNAP-ASSEMBLY MODULAR UNITS

The GHE system comprises four standardized hardware building blocks that interlock mechanically and electrically:

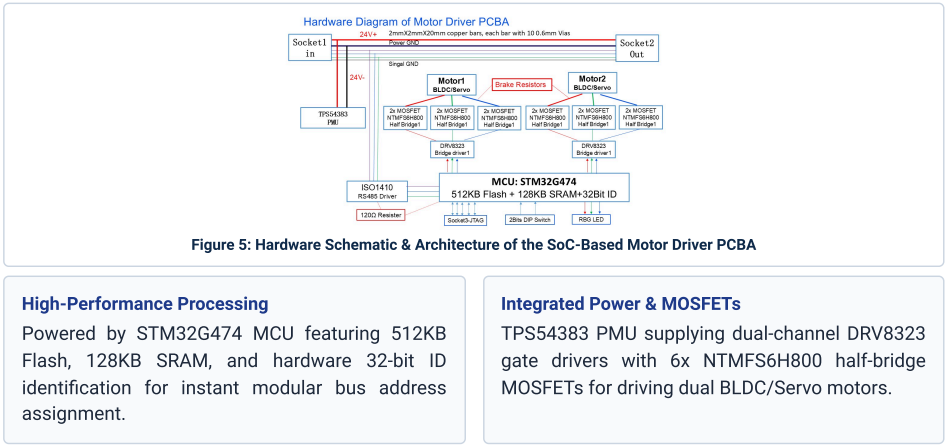

6. SOC-BASED STANDARDIZED MOTOR CONTROLLER PCBA DESIGN

At the core of each Snap module is an intelligent, software-defined motor controller PCBA designed around high-efficiency System-on-Chip (SoC) architecture, completely eliminating external drive racks.

7. ERGONOMIC HUMAN-CENTRIC DESIGN

The GHE Snap system is engineered to minimize operator fatigue, improve safety, and optimize worker efficiency:

• Optimized Working Height: Infeed telescoping heights adjusted to reduce repetitive bending and lifting strain.
• Intuitive Touch Interfaces: HMI panels mounted at eye level provide real-time status, jam alerts, anddiagnostic visuals.
• Low Noise Emissions: Direct-drive BLDC actuation keeps overall facility noise levels below 65 dBA, creating a safer work environment.

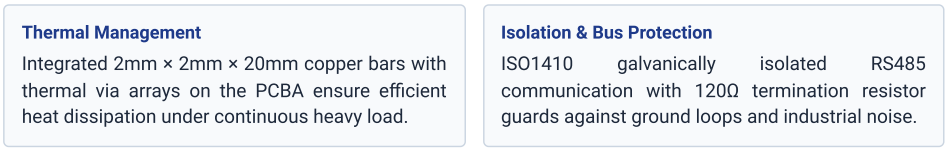

8. INDUSTRIAL SYSTEM RELIABILITY DESIGN

9. DATA SECURITY & COMPLIANCE

Data integrity is safeguarded through end-to-end encryption across all edge microcontrollers and cloud management systems. The system complies with international industrial standards, including ISO 27001, CE, and UL safety certifications, ensuring seamless integration into global enterprise IT frameworks.

10. DETERMINISTIC REAL-TIME RESPONSE

Module-to-module synchronization utilizes deterministic RS-485 bus protocol with dedicated hardware interrupts, maintaining sub-millisecond control response for precise high-speed package tracking and high-speed diverter activation.
